Home / Ceiling Recessed / Superled

Superled

RC00097WH 1 768x768 2
RC 00086 SUPERLED
RC00097WH 1 768x768 3
RC00097BK 1

Downloads

Instruction Manuals
Superled Instruction Manual
Photometry
Superled 600mA 3000K 20 Degree Photometric Data
Superled 700mA 3000K 20 Degree Photometric Data
Superled 600mA 3000K 40 Degree Photometric Data
Superled 700mA 3000K 40 Degree Photometric Data
Superled 700mA 3000K 70 Degree Photometric Data
Superled 600mA 3000K 70 Degree Photometric Data

Product Info

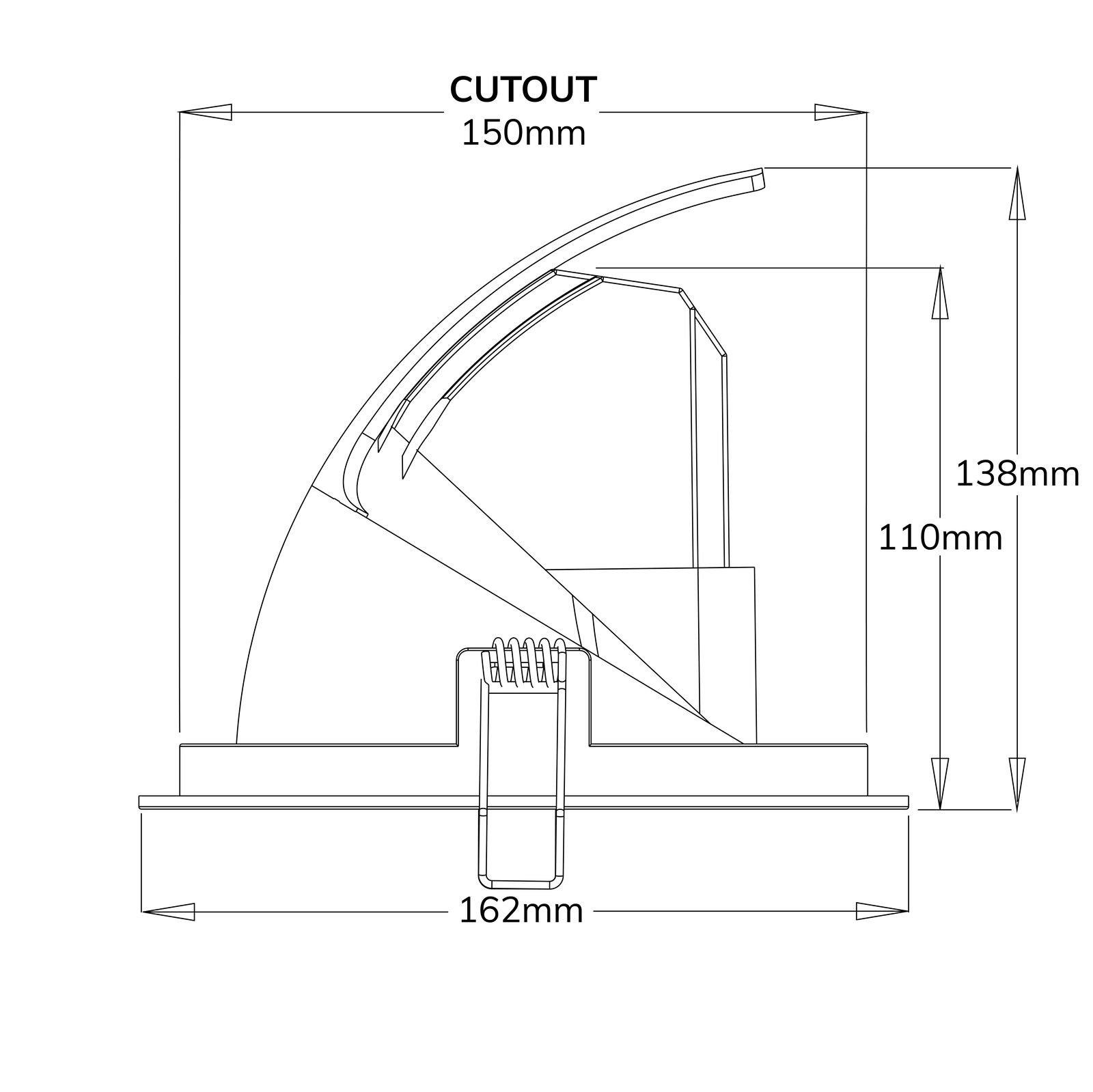

Dimensions 162 × 162 × 138 mm
Range

Superled

Cut out

150mm

Wattage
18w
20w
24w
26w
28w
Colour Temperature
90CRI 2700K
90CRI 3000K
90CRI 4000K
Beam Angle
20deg
40deg
70deg
Dimming
DALI
Mains Dimmable
Non Dimmable
MA

350mA, 500mA, 600mA, 650mA, 700mA

Lumen Output

2083lm Max, 2179lm Max, 2311lm Max, 2461lm Max, 2575lm Max, 2646lm Max, 2730lm Max, 2768lm Max, 2828lm Max, 2935lm Max, 2959lm Max, 3137lm Max

Height

138mm

Width

162mm

Length

162mm

IP Rating

IP20

Body Colour
Black
White

Superled

Ceiling recessed downlight with the functionality to pull the lamp out of the ceiling plate, with a 360° rotate and 45° tilt, giving complete flexibility. This function allows for more adjustment at higher angles needed to illuminate a space at higher level. Featuring high lumen output capability and available in various finishes and colour temperatures this fitting is perfect for retail, workplace and hospitality lighting schemes.

Download Product Information

Product Builder

RC-00086
Clear
